20 CATALOGUE MODELS · 7″–27″ · G+G / G+F / G+F+F · 10 POINTS
Projected capacitive, panel-format
PCAP (projected capacitive) is the phone-style touch technology: a sensor grid behind a glass cover lens, flush mounting, multi-touch gestures and no bezel lip. The YCL Touch PCAP range covers 7 to 27 inches in panel format for equipment builders — office and education terminals, industrial fronts, and interactive products. Structures are G+G (glass sensor on glass), G+F and G+F+F (film-based), with 6H tempered-glass options and controller choices that include EETI and ILITEK on specified models.
Catalogue models in this family

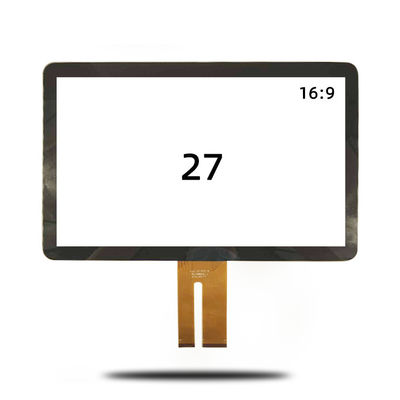

- 27″ PCAP panel, USB (YCL-2700-485)
- 24″ PCAP panel, 10 points (YCL-2400-485)
- 23.6″ PCAP, 6H, USB 2.0 (YCL-2360-131)
- 21.5″ PCAP 5V (YCL-2150-130), EETI / ILITEK controller variant
- 19.5″ CTP overlay kits (YCL-1950-485 / -119)
- 19″ PCAP overlay kit panel (YCL-1900-119)
- 18.5″ PCAP panel (YCL-1850-118)
- 17″ PCAP overlay kit, 5 ms, 16:9 (YCL-1700-118)
- 15.6″ PCAP multi-point panel (YCL-1560-120)
- 15″ G+G overlay kit, 10 points (YCL-1500-117)
- 15″ industrial PCAP, black silk-screen print (YCL-1500-200)
- 13.3″ PCAP, 6H tempered glass, 5V USB (YCL-0133-250)
- 12.1″ CTP panel for office / education (YCL-1210-194)
- 10.4″ CTP USB 5V panel (YCL-1040-216)
- 10.1″ capacitive kit, 2560×1440 class (YCL-1010-200)
- 8.4″ PCAP USB panels (YCL-0084-121 / YCL-8.400-012)
- 7″ 1024×600 capacitive panel (YCL-70-130)
| Structure | G+G, G+F, G+F+F (model dependent) |
|---|---|
| Touch points | 10 points |
| Surface | Tempered glass options to 6H hardness |
| Power / interface | USB, 5V on listed models |
| Response | 5 ms class on specified models |
| Customisation | Silk-screen printed cover glass, custom sizes — see panel builds |
PCAP stops scaling where infrared starts: above roughly 32 inches, an IR frame is almost always the economical answer. The IR vs PCAP guide walks through the crossover honestly.
Can the cover glass carry our branding?
Yes — silk-screen printing on the cover glass is a listed option on the industrial PCAP models. Send artwork with the inquiry.
Does PCAP work through an additional glass pane?
Standard PCAP panels are tuned for their own cover lens. For touch through a separate, thick glass pane, specify capacitive touch foil instead.
