15 CATALOGUE MODELS · 15.6″–93″ · DIY & OEM KITS
Panel-format infrared touch
The IR touch panel family collects the panel- and kit-format infrared products: DIY frames for builders, overlay kits sized for ATM and kiosk programs, 4:3 legacy-format panels, and the splicing touch frame used to make multi-panel video walls interactive. Most models are 10-point designs with USB interface and aluminium construction; several are explicitly packaged as kits — frame, PCBA and cabling together — so an integrator can go from carton to calibrated touch surface in one session. The full installation sequence is documented in our installation guide.
Catalogue models in this family

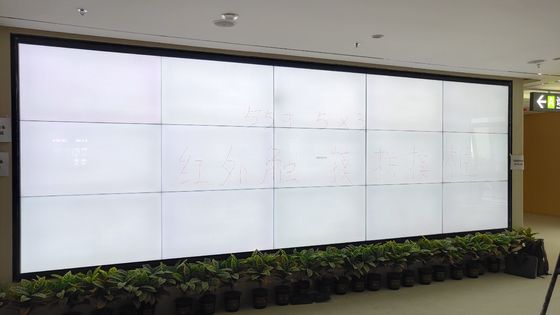

- 93″ DIY IR touch frame for video wall (YCL-PJ), 125 Hz class
- Splicing touch frame — for multi-panel walls
- 23.6″ interactive touch screen frame panel overlay kit, 16:10
- 23.6″ metal-case IR touch panel, open frame kit
- 21.5″ IR multi touch frame overlay kit, 10 points
- 19″ 16:10 overlay kit for ATM / kiosk / photo booth
- 19″ 4:3 interactive touch game table panel
- 19″ DIY IR touch frame overlays (gaming and ATM/LCD TV variants)
- 17″ 4:3 10-point infrared overlay
- 22″ and 15.6″ DIY IR frames, 16:10
- Aluminium alloy 10-point multi touch frame, USB (YCL-PJ)
Where panel-format IR fits
Panel kits are the default choice when the display already exists and the housing is being built around it: self-service terminals, photo booths, game tables and teaching walls. If you are building the electronics yourself instead, the same sensing technology is available as bare PCBA modules. For finished displays, compare with the multi touch screen family.
| Touch points | 10 points on most panel models |
|---|---|
| Interface | USB 2.0 full-speed |
| Formats | 16:9, 16:10 and 4:3 legacy ratios |
| Warranty (supplier-stated) | 1 year on listed panel models |
| Minimum order | From 1 piece on most listings; some kit listings start at 5 pieces |
What is included in an overlay kit?
A kit listing includes the aluminium frame profile, the infrared PCBA, USB cabling and calibration software access. You supply the display and the housing.
Can panels be custom-sized?
Yes — several listings are explicitly size-customisable. Send outer dimensions with your inquiry and we confirm against the frame drawing.
