15 CATALOGUE MODELS · 17″–86″ · 0.155 MM FILM · THROUGH-GLASS
Touch that hides behind glass
Capacitive touch foil is a transparent projected-capacitive film, just 0.155 mm thick on the listed models, that laminates to the inside face of a window or glass panel. The glass becomes the touch surface: customers interact from the other side, the electronics stay protected, and there is no visible hardware. It is the standard way to make a shop window interactive after hours, to put touch on a museum case, or to give a glass partition a control surface. Foil is specified by the glass it sits behind — thickness and lamination quality decide performance — which is why our foil vs frame guide should be read before ordering.
Catalogue models in this family
- YCL-F86 — 86″ USB PCAP foil, customised
- YCL-F75 — foil range 27″–86″
- YCL-F65 — 65″ curved flexible foil, 1222×689 mm
- YCL-F65 — 65″ waterproof foil, 10/20/32/40 points
- YCL-F50 — 50″ foil, 0.155 mm, 5V USB; curved variant listed
- YCL-F49 — 49″ through-glass-window touch film
- YCL-F43 — 43″ PCAP foil, 5V USB, 10 points
- YCL-F32 — 32″ foil, 0.155 mm cover thickness

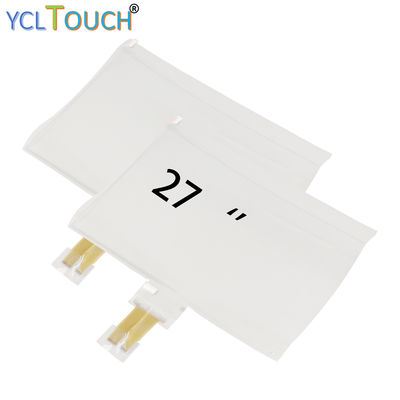

- YCL-F27 — 27″ transparent nano touch foil, 10 points
- YCL-F24 — 24″ nano foil, 85% transparency
- YCL-F19 — 19″ PCAP foil, USB
- YCL-F17 — 17″ transparent foil
- YCL-F15 — 15″ foil, 12–20 points
| Film thickness | 0.155 mm (listed models) |
|---|---|
| Touch points | 10 standard; up to 40 on the 65″ waterproof build |
| Transparency | 85% on the listed nano foil model |
| Power / interface | USB, 5V |
| Shapes | Flat and curved/flexible builds listed |
| Minimum order | From 1 piece on most listings |
How thick can the glass be?
Through-glass performance depends on the specific foil and controller tuning. Tell us your glass thickness in the inquiry — single-pane retail glass is routine; thick or laminated architectural glass needs a per-project check.
Is the foil removable?
Foil is laminated for the life of the installation. If you need a retrofit you can unbolt and move, choose an infrared frame instead.
